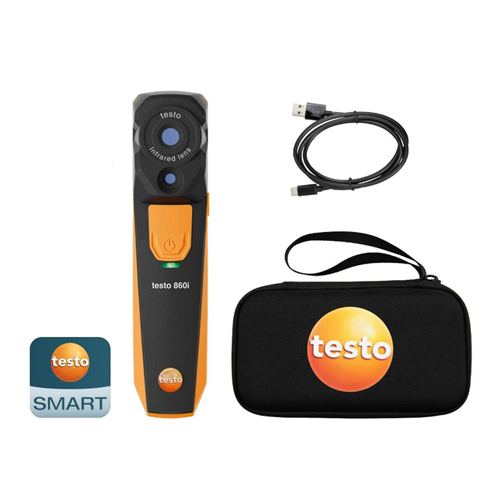

订货号：0563 0860

技术参数

防护等级

IP54

系统要求

requires iOS 17 or newer；requires Android 14 or newer；requires mobile end device with Bluetooth 4.0

红外图像输出

视场

48°×36°

对焦

定焦

最小聚焦距离

0.3m

图像刷新频率

9Hz

红外分辨率

256×192pixels

热灵敏度

50mk

光谱范围

8~14µm

可见光图像输出

最小聚焦距离

0.4m

图像像素

640×480pixels

图像显示

颜色

Iron，rainbow，rainbow HC，cold-hot，blue-red，grey，inverted grey，sepia，Testo，iron HAT，humidity palette

数码变焦

是

显示屏选项

红外图像/可见光图像

(in the testo Smart App)

测量

精度

±3℃ or ±3% of m.v.(at ambient temperature of -10...+40℃ and scene temperature of 0...+150℃ or +100...+350℃)

发射率

0.01~1

测量范围

-20...+350℃

反射温度

手动(via testo Smart App)

测量功能

分析功能

Hot/cold spots，Delta T，up to 10 selectable individual measuring points，area measurement(min./max. on area)

湿度模块说明

电流、电压或功率的输入

是

带湿度测量的湿度测量仪

Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App

钳形表

Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App

Application-specific measurement functions

DeltaHeat；DeltaCool；Humidity mode

(in the testo Smart App)

图像设备

全屏模式

是

无线局域网络连接

Communication with the testo Smart App；WIFI：IEEE 802.11b/g/n*

蓝牙

Peer-to-peer advertising for fast connection set-up*

Remote-controlled operation

Up to 10m from the mobile device(via WLAN)

*An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

图像存储

图像格式

.bmt；.jpg；.csv

存储设备

On a mobile device

电源

电池类型

Integrated Li-ion rechargeable battery

充电选择

USB-C

Charging time

Approx. 90min(15-min charge of an empty battery equals 30min of operating time)

环境情况

环境湿度

5 to 95%RH，non-condensing

振动

IEC 60068-2-6

Impact resistance test

1.5m

储存温度

-20~+70℃

操作温度

-10~+50℃

物理规格

三脚架界面

1/4"-20UNC

Mobile device attachment

Clip span：min.120mm，max.170mm and device depth up to max.12mm

重量

195g

大小

165×45×38mm

PC软件

系统要求

Windows 10；Windows® 11
